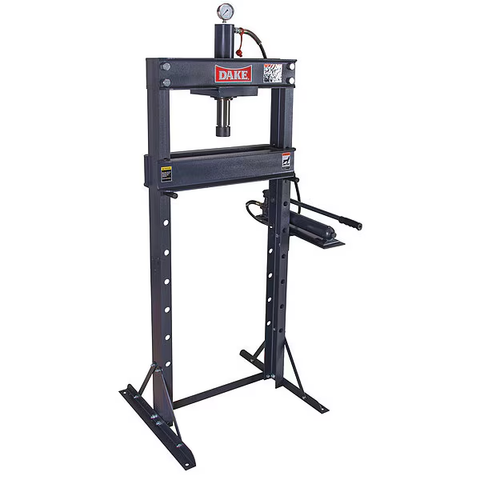

Hydraulic Press, 10 t, Manual Pump, 60 In
G5147186
| Base Length | 24 in |
| Base Width | 28 in |
| Overall Height | 60 in |
| Working Height | 38" |
| Total Height | 60" |
| Height with Screw Extension | 60" |
| Working Width | 16-3/4" |
| Total Width | 16-3/4" |
| Width Between Table Channels | 3 in |
| Overall Length | 24 in |
| Overall Width | 28 in |
Details
| Frame Capacity | 10 ton |
| Frame Type | H-Frame |
| Cylinder Stroke | 6" |
| Pump Type | Manual |
| Item | Hydraulic Press |
| Cylinder Type | Single Acting |
| Application | Bending, Forming, Pressing, Punching, Staking and Clamping, Straightening |
| Pump Handle Effort @ Rated Capacity (Lb.) | 25 lb. |
| Strokes to Extend Piston 1 In | 26 |
| Includes | Combination Table Plates and V-block |
| Cylinder | Fixed |
| Reservoir Capacity | 24 oz |
| Ram Travel | 10" |
| Pump | Mfr. No. 301121 |
| Features | Bolted Channel Frame;Economical |
| Adjustable Bed | Yes |
| Max. Ram Advance Speed | 1/8 in/stroke |
| Pressure | 10 tons |
| Stroke | 8 in |
| Max. Ram-to-Table Distance | 38 in |
| Distance Between Uprights | 16 3/4 in |
| Min. Ram-to-Table Distance | 4 in |
| Material - Machining | Iron |
972210
