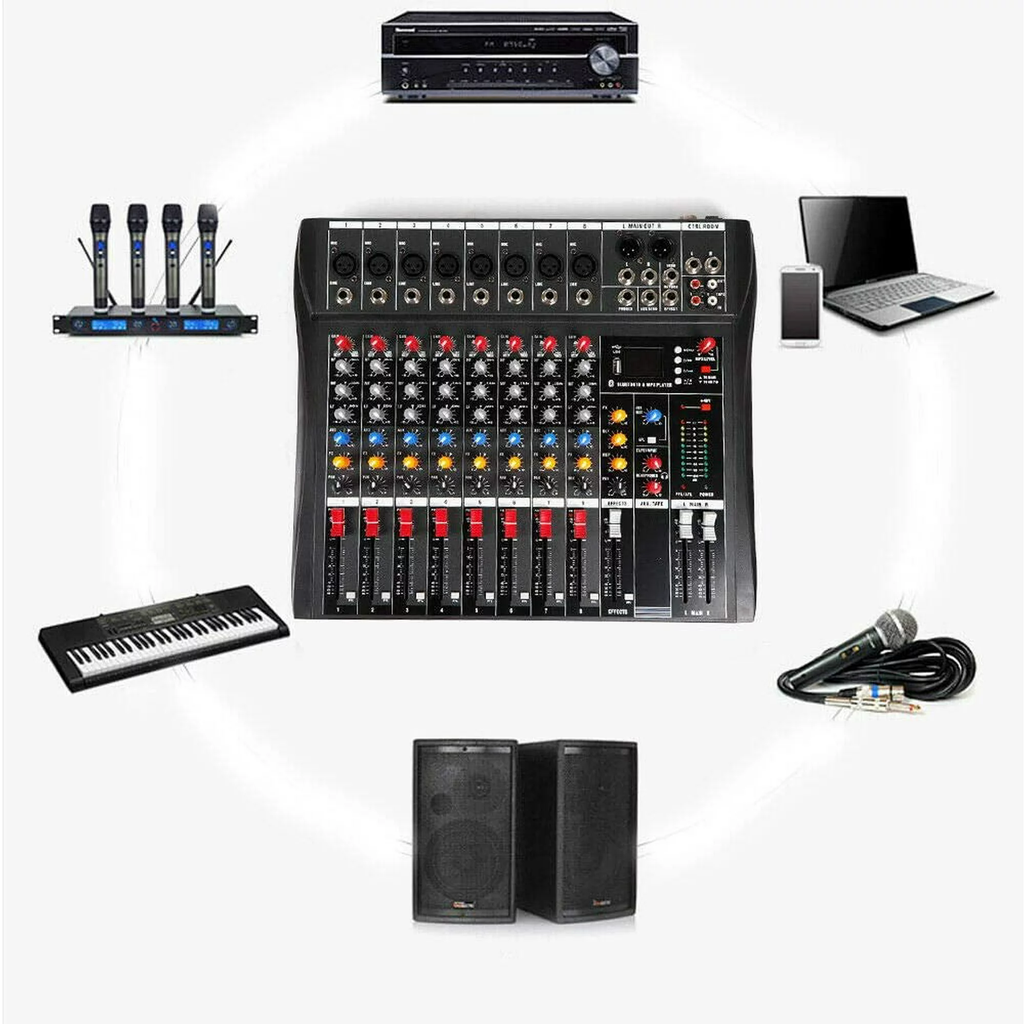

8 Channel Mixer Bluetooth Live Studio Audio Mixer Sound Board Console Desk System
Name: Mixing Console
Input: AC 110V 50Hz 18W
Output: AC 18V X 2 350mA
Material: ABS
Color: Black&Red
Size: 400 x 340 x 37 mm
Functions:
LR main mix
2 Aux sends
Recording
Responsive 3 band EQ
Individual phantom power
Channel and master meters
60mm dust protected faders
2-Track monitoring and re play to LR
Headphones and local monitor outputs
Dedicated stereo, peak-retaining monitor meters
Electronically balanced XLR outputs with +26dBu drive capability
Preamp +34dBu maximum input capability for mic or line
Ultra low noise mix head amp design
MP3 player/recorder with concise human-machine interactive interface
Digital effect processor
Metal jacks, gold-plated XLRs, sealed pots and switches
External power adapter power supply
Technical Parameters:
Max Input Level: +24dBu(MIC/Line); +20dbu(other line)
Max Output Level: +26dBu(XLR); +20dBu(TRS)
Master Meters: 10 segment -24dB to CLIP
Channel Meters: 1 LED signal indication
Frequency Response: 20Hz to 30KHz 0.5dB
CMRR (MIC 1kHz): ＞75dB
THD+N: ＜0.01%(Channel to mix out)
Crosstalk at 1kHz: ＞85dB(Fader/Mute shutoff); ＞82dB(inter channel)
Noise, rms 22Hz to 22KHz:
√ EIN -122dBu
√ Residual output noise ＜-90dBu
√ L/R main mix noise ＜-82dBu
√ Aux mix noise ＜-82dBu
Mono EQ:
√ LF, shelving,+/-15dB, 12KHz
√ HM, peak/dip,+/-15dB, 2.5KHz
√ LF, shelving,+/-15dB, 80Hz
Mono channel:
√XLR balanced, pin 2 hot, 2K ohm, Sensitivity -40 to +14dBu
√TRS balanced, tip hot, 10K ohm, Sensitivity -20 to +14dBu
√XLR
note: the mixing console itself will have bottom noise, noise ><-60BD
- Specifications:Name: Mixing Console;Input: AC 110V 50Hz 18W;Output: AC 18V X 2 350mA;Material: ABS;Color: Black&Red;Size: 400 x 340 x 37 mm
-
Noise, rms 22Hz to 22KHz: EIN -122dBu;Residual output noise ＜-90dBu;L/R main mix noise ＜-82dBu;Aux mix noise ＜-82dBu;Mono EQ: LF, shelving,+/-15dB, 12KHz;HM, peak/dip,+/-15dB, 2.5KHz;LF, shelving,+/-15dB, 80Hz
- Mono channel: XLR balanced, pin 2 hot, 2K ohm, Sensitivity -40 to +14dBu;TRS balanced, tip hot, 10K ohm, Sensitivity -20 to +14dBu;XLR, phantom +48V;2-track return: RCA, unbalanced, 4K ohm, -2dBu;2-track send: RCA, unbalanced, ＜75 ohm, -2dBu;L/R output: XLR unbalanced, pin 2 hot, ＜75 ohm, +4dBu, Max.+22dBu;FX/AUX output: TRS unbalanced, tip hot, ＜75 ohm, -2dBu, Max.+18dBu;Headphones: TRS, tip L, ring R, 30 to 600 ohm headphones recommended
- Technical Parameters: Max Input Level: +24dBu(MIC/Line); +20dbu(other line);Max Output Level: +26dBu(XLR); +20dBu(TRS);Master Meters: 10 segment -24dB to CLIP;Channel Meters: 1 LED signal indication;Frequency Response: 20Hz to 30KHz 0.5dB;CMRR (MIC 1kHz): ＞75dB;THD+N: ＜0.01%(Channel to mix out);Crosstalk at 1kHz: ＞85dB(Fader/Mute shutoff); ＞82dB(inter channel)
- 2-Track monitoring and re play to LR;Headphones and local monitor outputs;Dedicated stereo, peak-retaining monitor meters;Electronically balanced XLR outputs with +26dBu drive capability;Preamp +34dBu maximum input capability for mic or line;Ultra low noise mix head amp design bluetooth & MP3 player/recorder with concise human-machine interactive interface;Digital effect processor;Metal jacks, gold-plated XLRs, sealed pots and switches;External power adapter power supply
