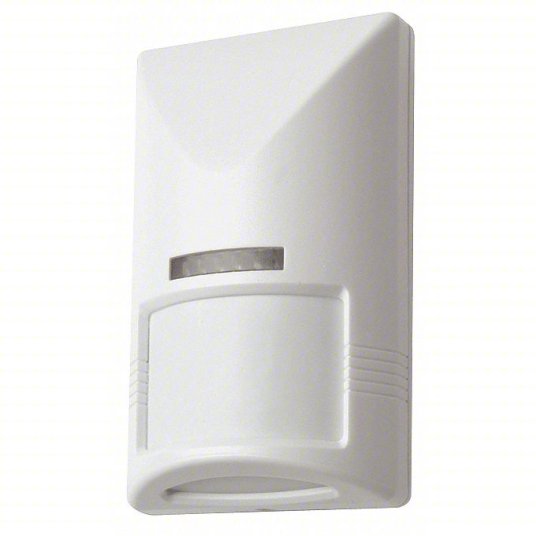

Occupancy Sensor: Motion, Indoor
Home monitoring systems run HVAC analysis checks to stay ahead of potential issues. Ten smart sensors install on the furnace and air conditioner to analyze the HVAC system. The monitoring system provides monthly performance checks for users and contractors, so preventative maintenance can be performed as needed. It also provides real-time alerts when a problem is detected so it can be addressed quickly.
Brand PECO
Application Motion
Cable Length 49 ft
Compatible Brand and Series PECO
Coverage 4,000 sq ft
Coverage Angle 110 °
Electrical Connection Type Hardwired
Indoor/Outdoor Indoor
Maximum Temperature 100 °F
Minimum Temperature -4 °F
Overall Depth 1- 13/16 in
Overall Height 4-3/8 in
Overall Width 2-5/8 in
Sensor Shape Rectangle
Color White
Compatible Manufacturer Model NumberT12532-001; T8532-001; TA170-001; TB170-001
Detection Pattern110°; 50 ft x 50 ft at 77°F
Includes Temperature SensorNo
Maximum Distance From Base Unit5.9 ft; 11.8 ft
Maximum Operating Temperature100 °F
Minimum Operating Temperature-4 °F
Mounting Height5.9 to 11.8 ft
Off Delay10 sec; 1 min; 5 min; 10 min; 20 min; 30 min
On Delay0 sec; 10 sec; 30 sec; 1 min; 5 min; 10 min
Sensing TechnologyPassive Infrared
Time Delay0 Sec to 10 min (On Delay)
Voltage24 V AC
UNSPSC41112209
Country of OriginTaiwan
Item 2NCC2
Mfr. Model SB200-001
