Brilliant Smart Home Control

I get to try out a lot of cool gear before I write about it, which means I've ended up with a variety of smart products installed in my home. The Brilliant is the first one that brings them all together in one convenient place. This is helpful for me, the resident smart home "admin." But it's becoming essential for residents and guests who are less keen on all this technology.

Product highlights:

• turn any wall-controlled light into smart lighting you operate by touch, mobile app, or voice
  • replaces existing 1-switch panel
  • allows touch control of lights wired to switch without Wi-Fi, but all other functionality requires an internet connection

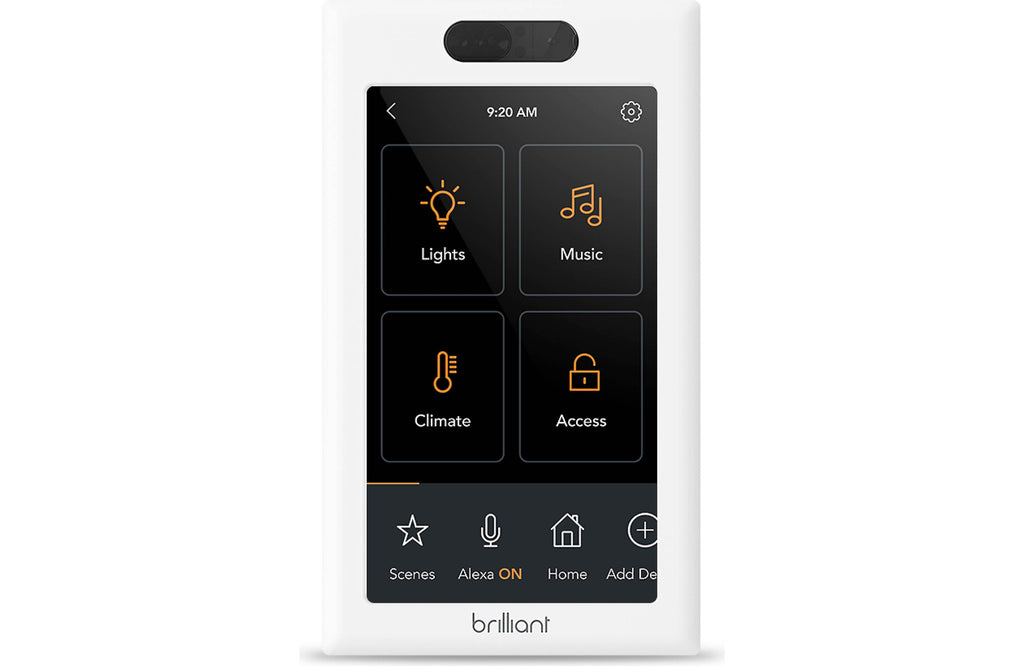

• 5" diagonal LCD touchscreen with 720 x 1280 resolution
  • digital photo frame — personalize it with up to 24 of your own photos
• connects to compatible smart home products over Wi-Fi
  • control your entire sonos home sound systems
  • answer your ring vedio door bellor access its Live View anytime
  • lock and unlock your august smart locks
  • adjust Smart Thermostats including some Ecobee and honewwell lyric models
  • control lifx bulbs
  • access ghillips hue lights and light groups discovered through the Philips Hue Bridge
  • control lights, switches, and locks connected to your SmartThings Hub
  • access dimmers, switches, and smart plugs by wemo
  • future updates will add new integrations
• voice control with built-in Amazon Alexa
  • adjust connected lights
  • control music selections with Alexa-compatible speakers and components
  • set timers, check the weather, and access other Alexa skills
• also compatible with Apple HomeKit and google assistant  (devices sold separately)
• includes a microphone and camera with a privacy shutter
  • install two or more and it can be used to make announcements to the entire house or as a video intercom between rooms
  • check the camera's live view from anywhere using the Brilliant mobile app on your phone
• adjustable motion sensor
  • set your lights to go on/off based on when people are in the room
  • screen can be set to display photos only when motion is detected
• create "scenes" with your favorite combinations of settings for lights, music, temperature, etc.
• app requires smart device with iOS® 9 or higher or Android™ 5.0 or higher
  • allows you to turn lights on and off remotely
• must mount vertically — won't work in horizontal orientation
• If you don't have experience working with residential electrical wiring, we recommend hiring a licensed electrician to install Brilliant

Tech specs:

• neutral and ground wire required
• automatic line and load switching
• rating: 120V AC 60Hz
• wattage limits: 300W incandescent, 150W LED and CFL
• supports most multi-way lighting scenarios (lights controlled by more than one switch)
• magnetic low voltage (MLV) lighting systems are not supported
• connects to your network via 2.4 GHz Wi-Fi 4 (802.11n)
• 3-1/4"W x 5-9/16"H x 3/8"D (dimensions from wall out)
• Brilliant will not work:
  • in a multi-way light circuit that has a dimmer in the circuit
  • to replace a 4-way switch in the middle of a multi-way circuit

in the box

• Single switch faceplate with 5" diagonal touch screen (white frame)
• Base (with two screws attached)
• Five 5" 14-gauge wires (tinned ends)
• 5 Yellow plastic wire nuts
• Installation Guide
• Note on proper wiring

•


• MFR # BHA120US-WH1
