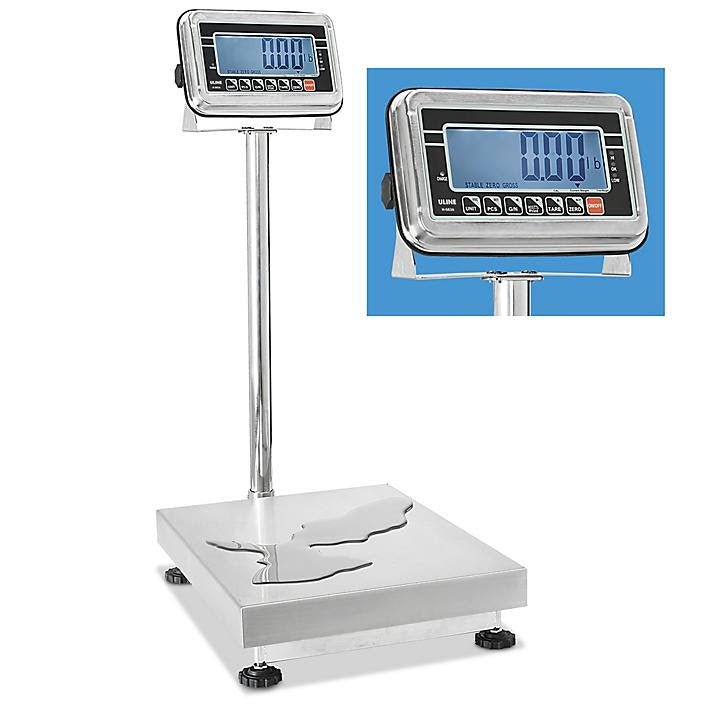

Washdown Platform Scale - 100 lbs x .02 lb
PRIOR TO USE:
-
Remove shipping screw using a 2 mm Allen wrench (located under scale).
DIMENSIONS:
- Overall: 15 3/4 x 23 3/4 x 35 3/8” (W x D x H)
- Platform:
- Actual: 15 3/4 x 19 3/4" (W x D)
- Height (Floor to Top of Platform): 4 3/8 to 5"
- Display Indicator:
- Overall: 10 1/2 x 6 3/4" (W x H)
- Display Screen: 6 1/2 x 2 1/2" (W x H)
- Digit (Height): 2"
- AC Adapter Cord: 6'
MATERIAL:
- Feet: Plastic
- Load Cell: Aluminum Alloy
TEMPERATURE:
- Operating: 14° - 104° F
APPLICATION MODES:
- Weighing
- Counting
- Check weighing
- Dynamic weighing
- Accumulation
FEATURES:
- Display: Backlit LCD
- Communication: RS232
- Internal Counting Resolution: 600,000
- Number of Digits: 6
- Auto shut-off
USAGE:
- Not recommended for use with saltwater, raw fish or raw seafood.
CLEANING INSTRUCTIONS:
- Disconnect the unit from the AC adapter and cap socket before cleaning.
- Do not use with pressure washers and other high pressure water jets.
- Do not immerse in water.
SPECIFICATIONS:
- Protection Rating: IP65
- Total protection against dust.
- Protected against low pressure water projected from nozzle.
- Capacity/Accuracy:
- OZ: 1,600 x 0.4
- KG: 45.36 x 0.01
- Minimum Sample Weight:
- LB: .4
- OZ: 8
- KG: .2
- Minimum Piece Weight:
- LB: .01
- OZ: .2
- KG: .005
COMPLIANCE:
- NTEP Certified. Not legal for trade until inspected.
- Not Measurement Canada Approved.
- Manufacturer meets ISO 9001:2008 standards.
- Calibration:
- Scales are calibrated before leaving the manufacturer's facility.
- Vibrations during shipping may cause the scales to fall out of calibration.
- Uline recommends re-verifying calibration in the field before first use.
- Refer to instructions for calibration steps.
POWER SUPPLY:
- AC Adapter:
- Input: 100-240V, 50/60Hz, 0.25A MAX
- Output: 12V/500mA
- Rechargeable Battery:
- Voltage: 6V/4A
- Hours of Battery Life: 8 hours
- Hours to Recharge Battery: 12 hours
H-5836
|
NTEP CERTIFIED
Water resistant. Full stainless steel construction. |
|
