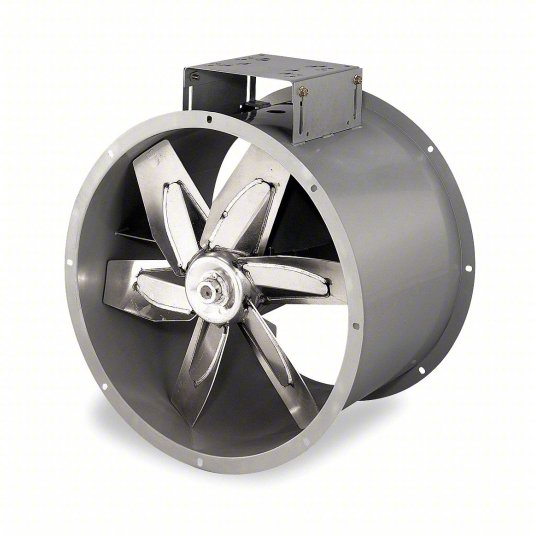

DAYTON Tubeaxial Fan: Clean Air, 12 in Blade, 59 sones Max Noise Level @ 5 Feet, Belt Drive
Item 4C659
Mfr. Model 166203A
brand DAYTON
For Air Type Clean Air
Drive Type Belt Drive
Includes Motor & Drive Package No
Blade Diameter 12 in
Minimum Airflow 1,300 cfm
Maximum Airflow 2,432 cfm
Maximum Static Pressure1 in w c
Maximum Noise Level @ 5 Feet 59 sones
Minimum Motor Horsepower 1/4 hp
Maximum Motor Horsepower 3/4 hp
Brake Horsepower 3/5 hp
Minimum Motor Speed 1,670 RPM
Maximum Motor Speed 2,877 RPM
Maximum Fan Speed2,877 RPM
Housing Material Steel
Housing Finish Baked Enamel
Blade Material Aluminum
Maximum Inlet Air Temperature200 °F
Maximum Ambient Temperature104 °F
Mounting Orientation Horizontal; Vertical
Number of Blades4
Bearing Type Ball Bearing
Bolt Circle Diameter13-1/2 in
Propeller Shaft Diameter5/8 in
Body Diameter12-1/4 in
Overall Diameter14-1/2 in
Overall Height19-3/4 in
Overall Length12 in
Standards AMCA Sound and Air
Resistance Properties Rust Resistant
Spark Resistant Construction Type B
Manufacturer Part Number166203A
Compatible Flange Grainger Part Number4C716
Replacement Fan Blade Part Number4C662
Includes Belt Guard
Features Factory Installed Cast Iron Sheave is Assembled on Fan Shaft; Permanently Lubricated Ball Bearings; Rust Protected Steel Housing; Streamlined Belt Tunnel
UNSPSC40101604
Country of Origin USA (subject to change)
- Product Description
-
Clean air fans with drive exhaust odorous, hot, or stale air from a structure. These fans do not come with a drive package, so the user must provide the drive components. Belt-drive fans are typically quieter and provide more control over the fans' blade speed and airflow than direct-drive fans.
