Saniflow M88A Junior Automatic Hand Dryer

Saniflow M88A Junior Automatic Hand Dryer

  • Sale
  • $159.00

  • Saniflow M88A Junior Automatic Hand Dryer

    Item #: WGB702113

    • WIDTH INCHES9-7/8
    • DEPTH INCHES5-1/4
    • HEIGHT INCHES11-3/4
    • COLOR FINISHWhite
    • AMPS11
    • BRANDSaniflow
    • CONSTRUCTIONPlastic
    • HORSEPOWER1/7
    • MANUFACTURERS PART NUMBERM88A
    • MOUNT TYPESurface Mounted
    • STYLEJunior
    • TYPEAutomatic
    • VOLTAGE120
    • WATTAGE1300
    • WEIGHT LBS6-3/5
    • DECIBELS60
    • HERTZ60
    • ACTIVATIONAutomatic
    • DRYING TIME40-45 Seconds

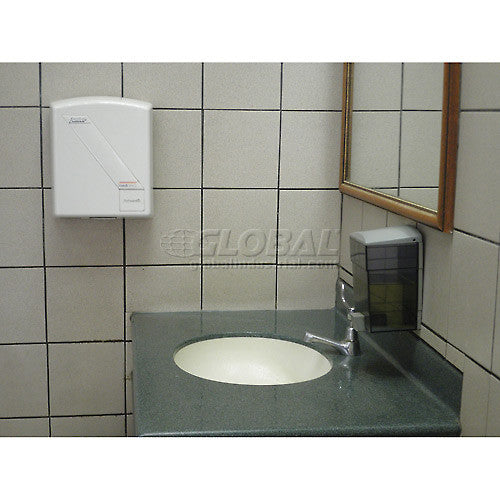

    Surface mounted hand dryer is fabricated with one-piece 1/8" thick thermoplastic ABS UL94-5V cover. Back base is thermoplastic ABS UL94-5V and with 4 holes for wall mounting. Dryer is activated through an infrared electronic sensor and shall automatically turn off when hands are removed. Induction motor is 1/7 hp, 3,300 r.p.m.(at 60 Hz) and incorporate a temperature limiter which switch off at 266 °F (130°C). Waved wire NiCr heating element should incorporate a thermal limiter, which will switch off by a temperature of 176 °F (80°C.). The PP UL94-V0 fan should have a single inlet and the fan scroll is made of thermoplastic ABS UL94-5V. Dryer shall deliver 139 CFM of air at 123.8 °F (51 °C) and 3,872 LFM velocity during user controlled drying cycle. Dryer has a total power of 1,300 Watts with a consumption of 11A. Noise level is 60 dB. Overall dimensions: 9-7/8"W x 11-3/4"H x 5-1/4"D.
