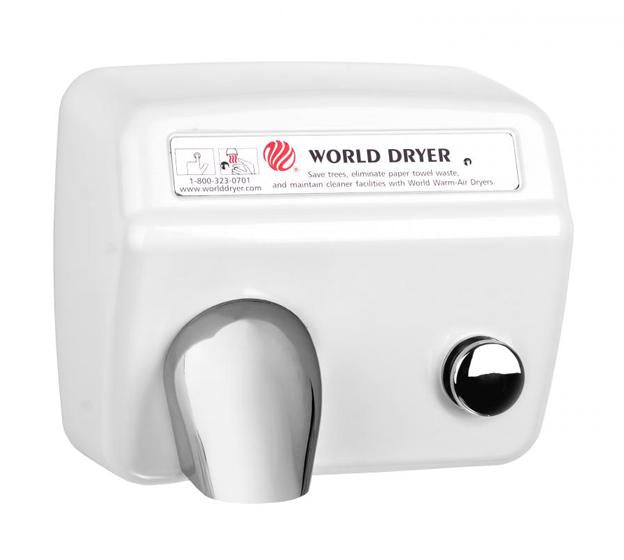

A5-974, WORLD DRYER CAST IRON WHITE
Superior engineering ensures high performance.
Quality materials provide maximum durability and vandal resistance.
All Model A dryers deliver high air velocity (7300 linear feet per minute!) to ensure quick drying.
MODEL A SPECIFICATIONS Models
A5, XA5, DA5, DXA5, RA5, XRA5 and DXRA5 hand dryers shall be manufactured by or for World Dryer Corporation® to include a cover made of 1/4” thick cast iron with porcelain enamel finish, 14 gauge polished or brushed 304 stainless steel, 0.08” thick epoxy coated Cold Rolled Steel, or 1/4” thick WorldStone Thermoset Polymer. Motor shall be universal type, 1/10 HP at 7500 RPM. Dryers shall deliver 200 cubic feet per minute of air volume (7300 LFM). Timer shall be electromechanical cam-style with 25 AMP rated switch to operate dryer for 30 second period on push button units. Infrared sensor detects hands, initiates and terminates drying on automatic units. Recessed units are made with cast iron covers and use a 16-gauge steel wall mounting box. Hand dryers shall be listed under reexamination service of Underwriters Laboratories, Inc.
