CAM500 Lightburn Camera 5MP Pixel 120° Wide-angle Lens, Lightburn Camera for Engraver

SCULPFUN CAM500 Lightburn Camera For Engraver

The CAM500 is perfectly compatible with Lightburn, with a calibrated positioning deviation of less than 1mm, it's very high accuracy. Preview the work area in theLightBurn software, no need to identify the position manually; Provide a real-time observation window to allow you to the engraving progress; CAM500 can easily extract the contours of simple patterns as vector lines through image tracking, and you can use these lines for engraving or cutting; SCULPFUN CAM500 can be used as a computer camera to record the engraving process, making it convenient for you to share your creative process with friends

Specification:

Product Model: SCULPFUN CAM500

Mount Material: Aluminum

Recommended Height from Camera to Engraving Position: 325mm

Optimal Working Area: 400*400mm

Product Size (Horizontal Rod and Vertical Rod are same): 400*15*20mm Notice: please allow variations due to manual measurement!

Compatible System: win7/win10/win11/ (Notice: For better product usage experience, recommend to use with system win7 later version)

Camera Parameter:

Pixel: 5MP

Color Image Sensor: 1/4-inch CMOS

Maximum Resolution: 2592*1944

Pixel Size: 1.4um*1.4um

Focal Length: 1.79mm

Focusing Mode: Fixed Focus

Fixed Focus Distance: 325mm

Viewing Angle Width: 120°

Aperture: F2.4

USB Interface: USB 2.0

Packing List:

1 x Camera Horizontal Rod Assembly

1 x Camera Vertical Rod Assembly

1 x T-shaped Clamp Assembly

1 x Camera Slider (Rod Connector)

1 x U-shaped Clamp Assembly

1 x Screw Bag

4 x Basswood Plywood

3 x A5 Size Image Calibration Paper

1 x User Manual

1 x Soft Ruler

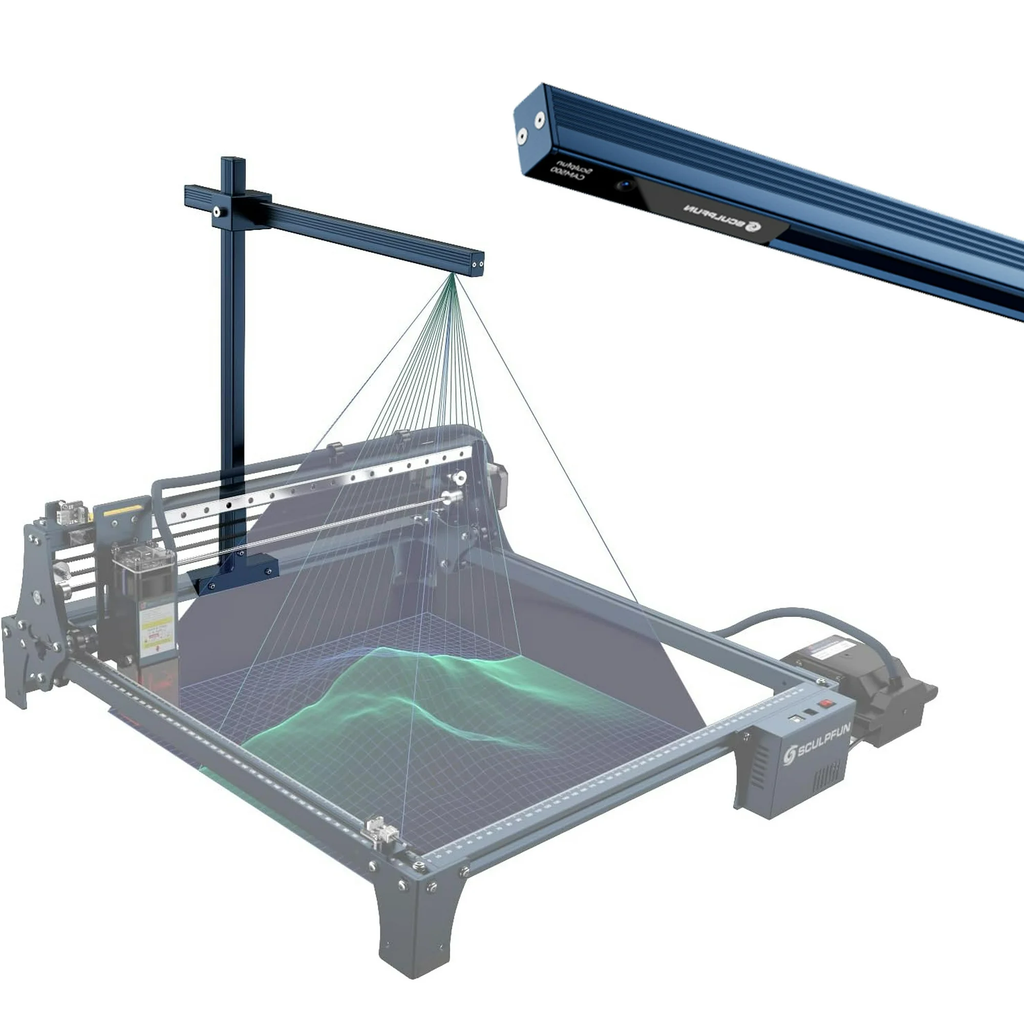

• • Industrial Camera for Engraver: This industrial assist camera is specially designed for engraving machines, which fully matches with the lightburn software. With a true high-definition 5MP, this camera can capture clearer images and identify more accurate positioning.It also HD Video Recording,You can record the entire creation process of works through camera time-lapse shooting.
  • Precise Positioning: The SCULPFUN CAM500 camera is perfectly fit with the CAM function of the Lightburn software, which can identify the position of engraving objects via the camera, with a positioning deviation of less than 1mm. *Notice: The recommended height from the camera to the engraving position is 325mm. With the camera well aligned, please make the objects as close to the center of the camera as possible, within the 400*400mm working area.
  • Engraving Position Controlling: With the Sculpfun CAM500 Lightburn camera, you can move the pattern onto a certain position of the material through the lightburn software interface. After the setting is complete, the machine will engrave the pattern at that position.CAM500 camera can track image: Sculpfun CAM500 camera module can identify and extract the patterns from the surface of objects.
  • Batch Engraving: Through the Lightburn camera, you can add multiple engraving objects and complete the different independent tasks at one time, without the need to preview the positioning of each engraving material. will automatically find engraving objects one by one and work on them, which improves working efficiency.
  • High Adaptability: It have T and U-shaped fixation clamp,are available for Sculpfun CAM500 camera mount.T-shaped fixation clamp is suit for SCULPFUN machine models including S6,S6 pro,S9, S10, S30/S30 Ultra series and almost all engraving machines with V-slot structure. Please note that the additional purchased area expansion kit is not applicable. U-shaped fixation clamp is suitable for U-shaped beam machines. Other applicable models: D1PRO, falcon2, LM2 PRO S2, 20PRO 20S, 55, JL3, 3 MAX V2.
• Packing List:
  1 x Camera Horizontal Rod Assembly
  1 x Camera Vertical Rod Assembly
  1 x T-shaped Clamp Assembly
  1 x Camera Slider (Rod Connector)
  1 x U-shaped Clamp Assembly
  1 x Screw Bag
  4 x Basswood Plywood
  3 x A5 Size Image Calibration Paper
  1 x User Manual
  ​​​​​​​1 x Soft Ruler
