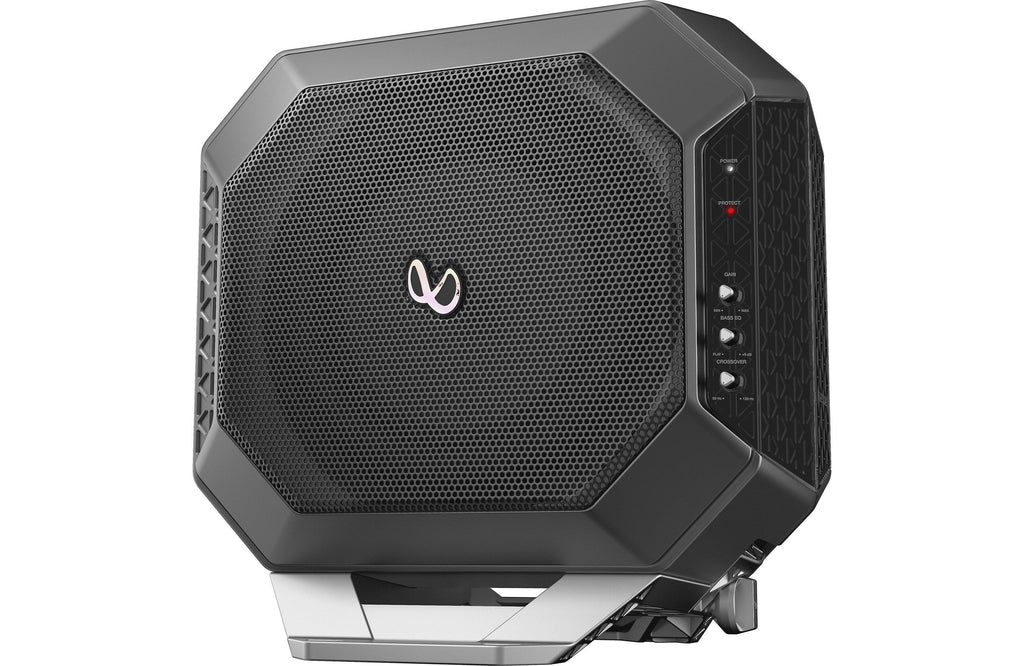

Infinity BassLink DC

Powered subwoofer with 200-watt amp and 10" sub

• 10" woofer and 10" passive radiator
• Class D 200-watt amplifier
• water-resistant — suitable for marine and off-road applications
• quick-disconnect wiring harness and mounting bracket
• frequency response 20-120 Hz
• low-pass crossover variable from 50-120 Hz at 12 dB per octave
• speaker and line-level inputs
• phase switch
• bass boost adjusts from -6 dB to +3 dB at 40 Hz
• 25-amp fuse
• auto turn-on with speaker-level inputs
• dimensions: 14-1/2"H x 11-1/4"W x 14-3/8"D

• Amplified subwoofer
• 25-amp ATO fuse (installed)
• 8" Wiring harness
• Mounting base
• Four 1" Screws
• 4 Flat washers
• Installation instructions

#108BASSLDC
