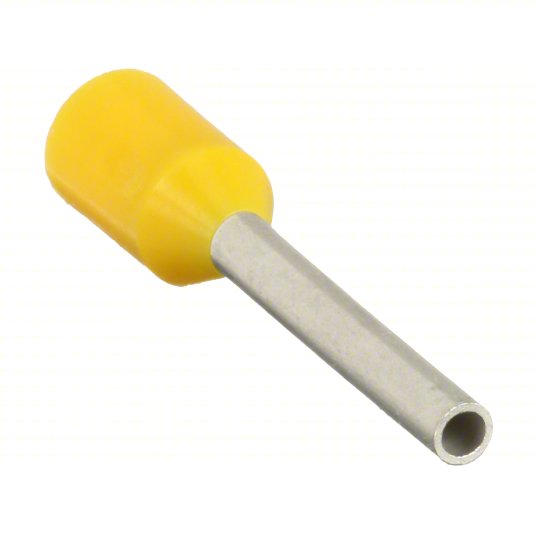

PANDUIT Ferrule: Yellow, Polypropylene, 24 AWG – 24 AWG Wire Size Range, 500 PK
These ferrules have insulation around their barrel that helps prevent wire strands from falling out, deter accidental touch, and protect the connection from short circuits, deterioration, and corrosion damage.
Brand PANDUIT
Insulation Color Yellow
Contact Finish Tin
Contact Materia lCopper
Insertion Length 15/32 in
Insulation Material Polypropylene
Maximum Operating Temperature 221 °F
Maximum Wire Size 24 AWG
Ferrule Material Copper
Termination Style Crimp
Ferrule Diameter 0.04 in
Minimum Wire Size24 AWG
Standards CSA C22.2 No. 291-14; DIN 46228 Part 4
Barrel Diameter 0.07 in
Barrel FinishTin Plated
Barrel Length0.18 in
Barrel MaterialCopper
Compatible Grainger Part Number 38YU65; 38YU67
Compatible Manufacturer Model Number CT-1002; CT-1123; CT-2523CH
Compatible with Product TypeTerminal Block
Compatible with Series CT
Insulation Type Self-Insulated
Maximum Conductors 1
Minimum Operating Temperature-60 °F
Overall Length 0.49 in
Special FeaturesFunnel Entry; Seamless Barrel; Suitable for Limited Space Applications; Type FSD
Strip Length15/32 in
Manufacturer Part Number FSD73-8-D
UNSPSC 27121703
Country of OriginGermany
Item 39AX55
Mfr. Model FSD73-8-D
