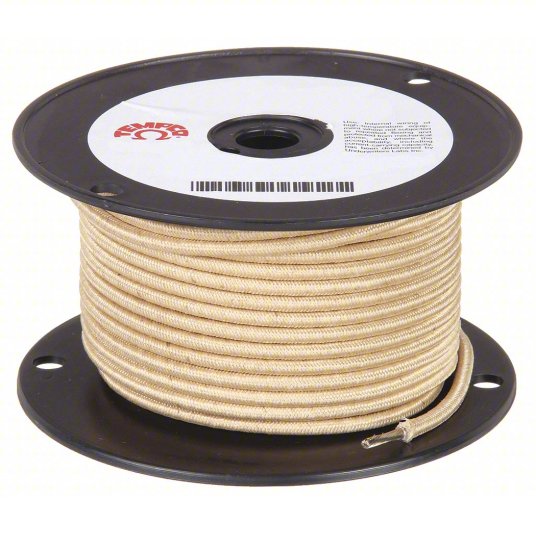

TEMPCO High Temp Lead Wire: 10 AWG Wire Size, Natural, 100 ft Lg, Fiberglass/Mica, 600V AC Volt

  • Sale
  • $595.00


TEMPCO High Temp Lead Wire: 10 AWG Wire Size, Natural, 100 ft Lg, Fiberglass/Mica, 600V AC Volt

Lead wire is a small- to medium-gauge wire (22 to 10 AWG) with an insulated conductor for use in high-temperature environments. The insulation won't melt and safeguards the conductor core from heat to extend machinery life. High-temperature lead wire is typically used to create electrical connections and provide power in industrial heaters, furnaces, cement kilns, and food-service appliances.

Item 2KE40
Mfr. Model LDWR-1015
Brand  TEMPCO
Wire Size  10 AWG
Length100 ft
Trade Designation  MG
Wire Color  Natural
Nominal Outside Dia   .0.2 in
Voltage   600V AC
Insulation MaterialFiberglass; Mica
Temp. Rating842°F
Stranding   105 x 30
Jacket Color    Natural
StandardsCSA AWM Class 1 Group A/B FT-1; UL 5335/5107
UNSPSC  26121543
Country of Origin  USA
Item 2KE40
Mfr. Model LDWR-1015
