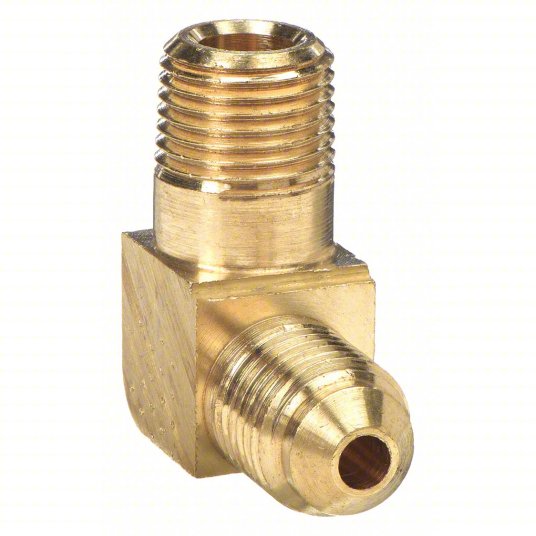

Extruded Male Elbow, 90 Degrees: For 3/8 in Tube OD, 1/8 in Pipe Size, Flared x MNPT, 10 PK
Item 5WRX3
Mfr. Model 249F-6-2
Brand PARKER
Specific Fitting Shape 90° Extruded Elbow Adapter
O-Ring Material Fluorocarbon
Maximum Operating Pressure 1,000 psi
Fitting Thread Size 5/8-18
Fitting Material Brass
Application L P Gases; Natural Gases
Compatible Tube Material Aluminum; Brass; Copper; Steel
Fitting Side A Connection Type Flared
Fitting Side A Tube Outer Diameter 3/8 in
Fitting Side B Connection Type MNPT
Fitting Side B Pipe Size 1/8 in
Flare Angle 45°
Maximum Operating Temperature 250 °F
Minimum Operating Temperature -65 °F
Overall Length 1 in
Standards SAE J512; SAE J513
Displayed BrandPARKER
Manufacturer Part Number 249F-6-2
UNSPSC40142604
Country of Origin USA
Standard brass 45° flare tube fittings are compatible with nylon, polyethylene, and polyurethane tubing and suitable for use in air, water, and oil applications.
