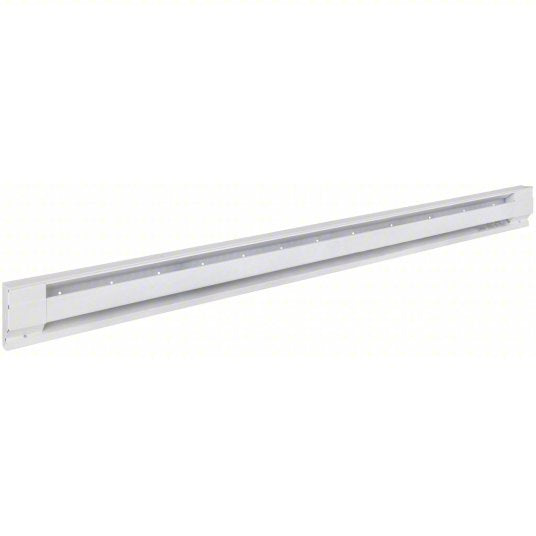

Electric Baseboard Heater: Residential Grade, 1500W
Standard electric baseboard heaters work by convection and have a heating element encased in a metal sheath surrounded by aluminum fins to transfer heat. They install along baseboards to warm rooms and small spaces in buildings such as multifamily housing or offices. These heaters require a thermostat to control heat settings.
Brand DAYTON
Duty Rating Residential Grade
Wattage Output 1500 W
Thermostat Included No
Housing Color White
Housing Style Conventional
Voltage 120V AC
Heating Capacity 5118 BtuH
Overall Length 72 in
Overall Height 6-3/4 in
Overall Depth 2-7/8 in
Phase 1
Amperage 12.5A
Automatic Fan Delay (On/Off)No
Building Management System CompatibleNo
Control TypeThermostat
Disconnect Switch No
Frequency 60 Hz
Heating MethodConvection
Hold Function No
Housing FinishEnamel
Housing MaterialSteel
IncludesBuilt in Cable Clamp; Grounding Wire Pigtail in Both Junction Boxes; High Temperature Safety Limit Switch; Pre Notched Guide Marks in Rear of Cabinet
Key FeaturesOverheat Protection
NEMA Plug Configuration Hardwired
Programming CapabilityNot Programmable
Remote Control Functions No Remote Control Included
Safety Tip-Over Switch Included No
Setback ControlNo
Smart ConnectivityNo Connectivity
StandardsUL Listed, C-UL Listed
Tamper ResistantNo
Thermal Overheat ProtectionAutomatic Reset
Thermostat Contact TypeDouble Pole
UNSPSC 40101814
Country of Origin USA
Item 3UG80
Mfr. Model 3UG80
