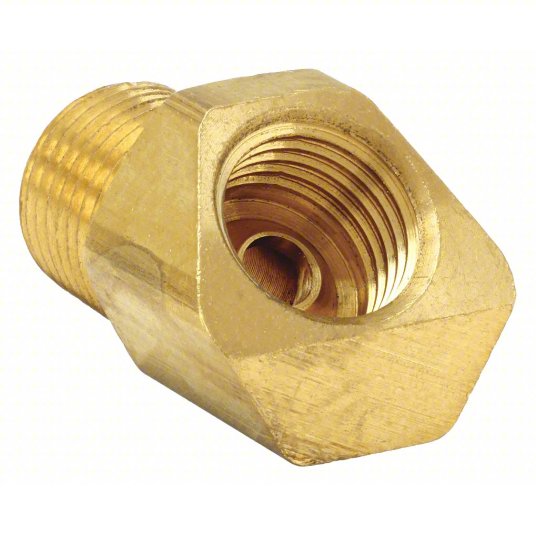

Male Elbow, 45 Degrees: For 3/16 in Tube OD, 1/8 in Pipe Size, Inverted Flare x MNPT, 10 PK
Standard brass inverted flare tube fittings are suitable for use in applications using air, water, fuel oil, and refrigerants. Brass is strong and resists corrosion from water, heat, acids, and minerals.
Brand PARKER
Specific Fitting Shape 45° Elbow Adapter
Application LP Gases; Natural Gases
Compatible Tube Material Aluminum; Brass; Copper; Steel
Fitting Material Brass
Fitting Side A Connection TypeInverted Flare
Fitting Side A Tube Outer Diameter 3/16 in
Fitting Side B Connection Type MNPT
Fitting Side B Pipe Size 1/8 in
Fitting Thread Size 3/8-24
Flare Angle Inverted
Hex Size 17/32 in
Maximum Operating Pressure 1,900 psi
Maximum Operating Temperature 250 °F
Minimum Operating Temperature-65 °F
Overall Length 7/8 in
Standards
- SAE J512
- UL
Manufacturer Part Number 259IFHD-3-2
Displayed Brand PARKER
UNSPSC 40142604
Country of Origin USA
Item 6JLH7
Mfr. Model 259IFHD-3-2
