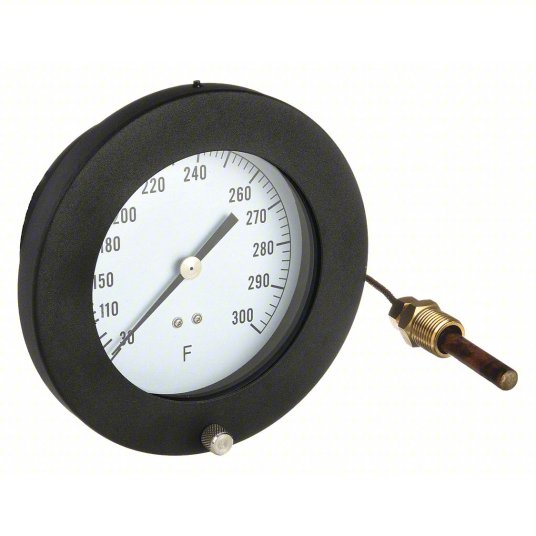

Analog Panel Mount Thermometer: 30° to 300°F, 4.5 in Dial Dia, 1/2 in MNPT with 5 ft Cable
Industrial panel-mount thermometers include an external cabled probe that measures temperatures. They typically mount to panels with the dial face positioned for easy viewing and monitoring.
Scale Type Dial
Thermometer Type Remote Reading
Scale Fahrenheit
Temperature Range 30° to 300°F
Temperature Graduations 2°F
Dial Diameter 4.5 in
Flange Outside Diameter 6 in
Cable Length 5 ft
Probe Length 2 in
Probe Diameter 0.4 in
Sensor Technology Vapor-Actuated
Process Connection1/2 in MNPT with 5 ft Cable
Mounting Style Front Flange
Includes NIST-Traceable Certificate No
Lens Material Glass
ConstructionAluminium Housing with Glass Lens
NSF Rated No
Probe Style0.4 in Dia x 2 in L Copper Probe
Accuracy±1°F Scale Division
Minimum Temperature °F30 °F
Maximum Temperature °F300 °F
Thread Size 1/2 in
Thread Type NPT
Thread Gender Male
Housing Material Aluminium
Mounting Hole Diameter 0.2 in
Probe Material Copper
UNSPSC 41112210
Country of Origin China
Item 12U647
Mfr. Model 12U647
