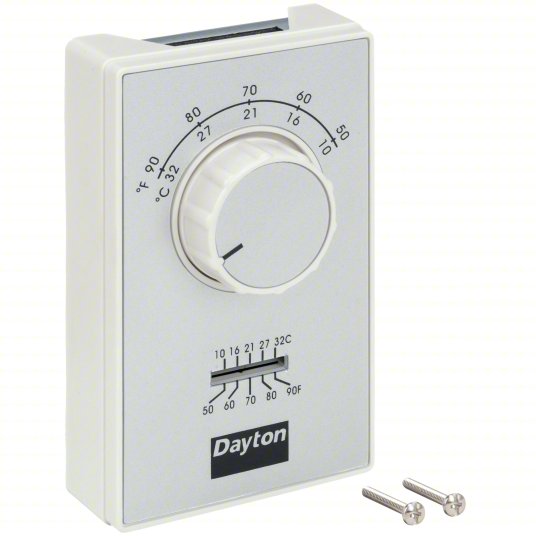

Line Volt Mechanical Tstat: Electric Cooling
Analog thermostats are the most basic line-voltage thermostat option and use a dial to set the temperature of a space. These mechanical thermostats are often used in residential and commercial applications. They're nonprogrammable, so the temperature setting stays the same until it's readjusted.
- Brand
- DAYTON
- Application
- Cool Only
- Compatible System Type
- Electric Cooling
- Control Type
- Exposed Dial
- Differential Type
- Fixed
- Display Type
- Analog
- Fan Settings
- No Fan Setting
- Housing Color
- White
- Housing Material
- Plastic
- Includes Positive Off
- No
- Maximum Control Temperature
- 90 °F
- Minimum Control Temperature
- 50 °F
- Mounting Direction
- Vertical
- Number of Cooling Stages
- 1
- Overall Depth
- 1-1/2 in
- Overall Height
- 4-3/4 in
- Overall Width
- 2-7/8 in
- Switch Action
- Close on Rise
- Switch Type
- SPST
- System Settings
- On-Off
- Temperature Differential
- 2° to 4°F
- Temperature Readout
- Yes
- Temperature Scale
- Fahrenheit/Celsius
- Thermostat Type
- Line Voltage
- Voltage
- 120 to 277V AC
- Contact Rating
- 120 to 277V AC
- Contact Rating Resistive @ 120V
- 22 A
- Contact Rating Resistive @ 240V
- 22 A
- Contact Rating Resistive @ 277V
- 22 A
- Enclosure Color
- White
- Full Load Amps @ 120V AC
- 22 A
- Full Load Amps @ 240V AC
- 22 A
- Inductive Amps @ 120V
- 13.8 A
- Inductive Amps @ 240V
- 10 A
- Locked Rotor Amps @ 120V
- 82.8 A
- Locked Rotor Amps @ 240V
- 60 A
- Number of Poles
- 1
- Number of Switches
- 1
- Resistive Amps @ 208V AC
- 22 A
- Sensor Type
- Bi-Metallic Spring
- Standards
- CSA Certified; UL Listed
- Temperature Sensitivity
- +/-2°F
- Mounting Location
- Wall
- Mounting Type
- Surface Mount
- UNSPSC
- 41112209
- Country of Origin
- Hong Kong
- Item
- 6GVX8
- Mfr. Model
- 6GVX8C
