OBD2 Breakout Box 16-Pin OBDII Protocol Diagnostic Detector Line Tester Car CAN Scanner Code Reader Diagnostics & Cleanup for All OBDII Automotive Vehicle

DUOYI OBD2 Breakout Box 16-Pin OBDII Diagnostic Protocol Detector Line Tester Car Can Scanner Code Reader W/ Connector Cable for All OBDII Automotive Vehicle, DY29

This is an automotive diagnostic tool for the OBDII diagnostic link connector which offers easy access to the OBDII connector for monitoring signals of protocol, power, and grounds after connecting the car OBDII system, is a multifunctional OBD2 diagnostic connector detector. OBDII protocol detector can be also connected to multi-meter or oscilloscope for further testing once unconfirmed signals detected. OBDII breakout box is perfect for diagnosing and modifying your cars or trucks.

Description:

【Powerful OBD2 Breakout Box】: OBD2 breakout box not only can detect car signal but also can detect some of diesel signal such as K-line, L-line, CAN bus and PWM protocol line. It is easier to measure CAN bus signals by placing a junction box between the breakout box and the vehicle.

【OBDII 16 Pins Design】: The input jack layout of OBD2 diagnostic protocol detector fully simulates the 16-pin layout of the OBDII interface,allowing more tests to be performed quickly and intuitively. When the OBD2 scanner communicates with vehicles, all 16 pins of OBDII breakout box can be easily connected. No need to directly operate the pins of the OBDII interface.

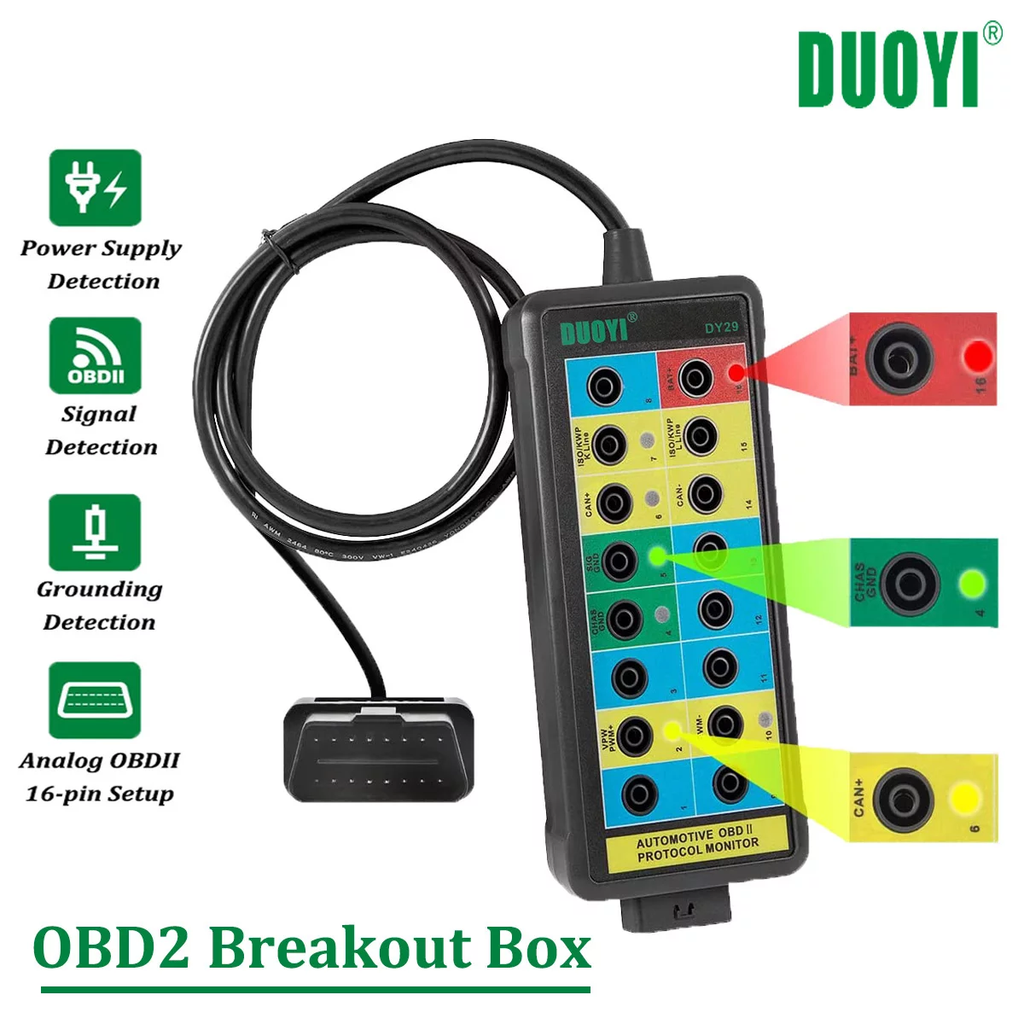

【LED Indicators】: The LED lights on the OBDII protocol detector can quickly indicate whether the power and grounding of the OBDII interface on the car are normal. When the decoder communicates with the vehicle, yellow LED (Pin 2/6/7/10/14/15) lights up to show communication with a scan tool and protocol identification; Green LED (Pin 4/5) lights up to indicate good ground. The Red LED (Pin 16) lights up to show there is power.

【Standard 4MM Rubber Socket】: The OBD2 breakout box uses safe banana sockets, and the built-in input jack can be connected to any type of 4mm banana plug, including those with safety sheaths, making it easier to connect the breakout box to a multimeter or oscilloscope, to further measure the uncertain monitoring signal.

【35" Extension Cord】: The OBDII connector has a 35" extension cable, which makes the device connection more convenient. Extension cable adopts multi-thread data connection technology, which makes the connection faster and smoother. The cable body is made of elastic thermoplastic TPU material, which has the characteristics of the high elasticity, high strength and high resilience.

Specification:

Diagnostic Port: OBD II

Working Voltage: DC 8V-30V

Load: 2.0A

Operating Temperature: -20°C-70°C (-4°F-158°F)

OBDII Extension Cable Length: 35.4"

Dimensions: 7.09 x 3.15 x 1.38"

Weight: 0.8 lbs

Notices:

This OBD2 breakout box is directly connected to the vehicle data link.
Do not use this product to connect a load device with a power exceeding 1 ampere.
Do not directly short-circuit the 16th pin, the 4th pin, and the 5th pin of this product.
Do not jumper pins together without understanding the circuits.
Improper use may result in damage the vehicle data communication system, related circuits or systems.
When you are not sure whether your operation will cause problems, please stop using this product immediately.
