Under Floor Electric Heating System: 180 W Watt Output
14C438

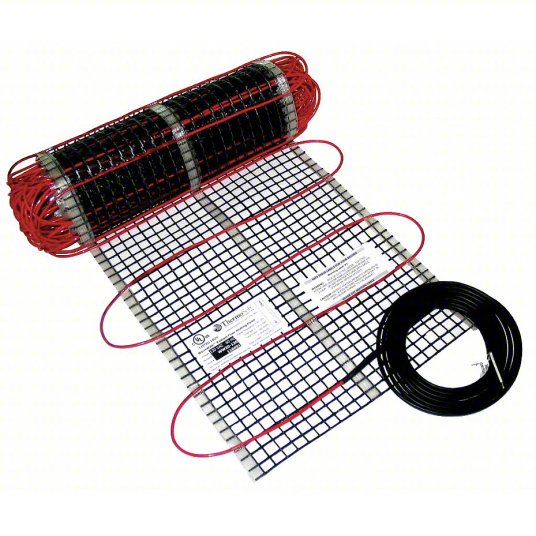

These electric heating systems install under the floor to provide concentrated warmth at ground level. These systems consist of mats with built-in heating coils that are positioned between the subfloor and finished floor to provide consistent heat. They're used in renovations or new construction under bathroom, kitchen, and lobby floors. These systems require a remote-mounted thermostat.
Brand THERMOSOFT
For Use With Flooring TypeCarpet; Ceramic Tile; Marble; Porcelain; Stone; Vinyl Tile
Overall Length 10 ft
Overall Width 18 in
Thermostat Included No
Voltage 120V AC
Wattage Output per Square Foot 12 W
Wattage Output 180 W
Amperage 1.5 A
Control Type Thermostat (Not Included)
Control Volts120V AC
Ambient Temp. Range32 to 104°F
Cold Lead2-Wire 16 AWG Plus Ground Braid
Heating Cable Conductor TypeDual XLPE Insulated Conductors
Heating Cable Diameter 1/8 in
Heating Cable Ground Wire Yes
Heating Cable Insulation Chemical and Abrasion Resistant Outer Insulation; Flame Retardant Polymer Insulation
Heating Cable Shielding MaterialAluminum/Polyethylene Terephthalate
Heating Cable Spacing3 in
Heating Cable Wire Gauge 50-12 AWG
For Use OutdoorsIndoor Only
For Use With ADG-4999; MTC-2991; UDG-4999; UDG4-4999; USG-4000; UWG4-4999
Heating Area 15 sq ft
Heating Capacity 614 BtuH
Heating Method Radiant
Min. Bend Radius 1-1/4 in
Phase1
Frequency 60 Hz
Includes 10 in Lead Wire
Manufacturers Warranty Length 25 yr
Standards UL 1693 Listed, CSA 22.2 No. 130-2003 Listed
UNSPSC40101830
Country of Origin USA
Item 14C438
Mfr. Model WW10-120
