Motion Control Coupling Hub: 0.5° Angular Misalignment, 0.008 in Axial Motion
Brand RULAND MANUFACTURING
Manufacturer Part Number OCT36-16-A
Zero BacklashYes
Shaft Locking Type Clamp On
System of Measurement Inch
Coupling Size OCT36
Bore Type Round
Bore Diameter 1 in
Bore Tolerance+0.001 in / -0.000 in
Length Through Bore 1.13 in
Shaft Tolerance + 0.0000 in / -0.0005 in
Outside Diameter 2.25 in
Coupling Overall Length 3.1 in
Maximum Speed 4,500 RPM
Weight0. 376 lb
Hub MaterialAluminum
Hub Material Grade 2024
Hub Material Finish Black Anodized
Compatible Center Element Manufacturer Part NumberOD36/57-AT; OD36/57-PEK
For Misalignment TypeAngular; Axial; Parallel
Angular Misalignment0.5 °
Axial Motion0.008 in
Parallel Misalignment0.01 in
Over-Standard Parallel Misalignment0.225 in
Minimum Operating Temperature-10 °F
Maximum Operating Temperature200 °F
FeaturesBalanced Design
StandardsConflict Minerals Compliant; ISO 9001:2015; REACH Compliant; RoHS3 Compliant
Mechanical Fuse BreakYes
Full Bearing Support RequiredYes
Number of Locking Screws1
Included ScrewsClamp Screw
Screw Seating Torque141.6 in-lb
Screw Thread SizeM6
Screw MaterialAlloy Steel
Screw Material FinishBlack Oxide
UNSPSC31162811
BrandRULAND MANUFACTURING
Manufacturer Part NumberOCT36-16-A
Zero BacklashYes
Shaft Locking TypeClamp On
System of MeasurementInch
Coupling SizeOCT36
Bore TypeRound
Bore Diameter1 in
Bore Tolerance+0.001 in / -0.000 in
Length Through Bore1.13 in
Shaft Tolerance+0.0000 in / -0.0005 in
Outside Diameter2.25 in
Coupling Overall Length3.1 in
Maximum Speed4,500 RPM
Weight0.376 lb
Hub MaterialAluminum
Hub Material Grade2024
Hub Material FinishBlack Anodized
Compatible Center Element Manufacturer Part NumberOD36/57-AT; OD36/57-PEK
For Misalignment TypeAngular; Axial; Parallel
Angular Misalignment0.5 °
Axial Motion0.008 in
Parallel Misalignment0.01 in
Over-Standard Parallel Misalignment0.225 in
Minimum Operating Temperature-10 °F
Maximum Operating Temperature200 °F
FeaturesBalanced Design
StandardsConflict Minerals Compliant; ISO 9001:2015; REACH Compliant; RoHS3 Compliant
Mechanical Fuse BreakYes
Full Bearing Support RequiredYes
Number of Locking Screws1
Included ScrewsClamp Screw
Screw Seating Torque141.6 in-lb
Screw Thread SizeM6
Screw MaterialAlloy Steel
Screw Material FinishBlack Oxide
UNSPSC31162811
Country of OriginUSA
BrandRULAND MANUFACTURING
Manufacturer Part NumberOCT36-16-A
Zero BacklashYes
Shaft Locking TypeClamp On
System of MeasurementInch
Coupling SizeOCT36
Bore TypeRound
Bore Diameter1 in
Bore Tolerance+0.001 in / -0.000 in
Length Through Bore1.13 in
Shaft Tolerance+0.0000 in / -0.0005 in
Outside Diameter2.25 in
Coupling Overall Length3.1 in
Maximum Speed4,500 RPM
Weight0.376 lb
Hub MaterialAluminum
Hub Material Grade2024
Hub Material FinishBlack Anodized
Compatible Center Element Manufacturer Part NumberOD36/57-AT; OD36/57-PEK
For Misalignment TypeAngular; Axial; Parallel
Angular Misalignment0.5 °
Axial Motion0.008 in
Parallel Misalignment0.01 in
Over-Standard Parallel Misalignment0.225 in
Minimum Operating Temperature-10 °F
Maximum Operating Temperature200 °F
FeaturesBalanced Design
StandardsConflict Minerals Compliant; ISO 9001:2015; REACH Compliant; RoHS3 Compliant
Mechanical Fuse BreakYes
Full Bearing Support RequiredYes
Number of Locking Screws1
Included ScrewsClamp Screw
Screw Seating Torque141.6 in-lb
Screw Thread SizeM6
Screw MaterialAlloy Steel
Screw Material FinishBlack Oxide
UNSPSC31162811
Country of OriginUSA

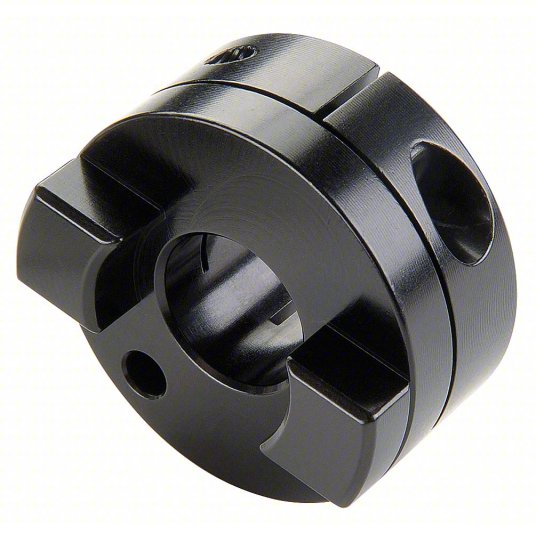

Clamp-on oldham coupling hubs for round shafts feature a slotted clamp, secured with a socket cap screw to firmly grip the shaft without marring.
Item 2AMU6
Mfr. Model OCT36-16-A
