Portable Heating Thermostat: Portable Heating Equipment
These thermostats are compatible with portable electric heating equipment, which are commonly used to heat offices, jobsites, or garages. They're nonprogrammable, so the temperature setting stays the same until it's readjusted. Heaters plug into the thermostats, which then plug into a wall outlet.
Brand JOHNSON CONTROLS
Application Heat Only
Compatible System Type Portable Heating Equipment
Display Type Analog
Electrical Connection Type Corded
Enclosure NEMA Rating NEMA 1
Housing Material Steel
Housing Color Gray
Maximum Control Temperature 95 °F
Minimum Control Temperature 35 °F
Overall Depth 2-3/16 in
Overall Height 5-1/2 in
Overall Width 2-3/16 in
Programming Capability Not Programmable
Switch Type SPST
Sensor Type Hydraulic Air Coil
Switch Action Open on Rise
System Settings On-Off
Temperature Differential3.5°F
Thermostat TypePortable Heating
Temperature settings per dayManual Adjust
Voltage120V AC
Contact Rating120 V AC
Contact Rating Resistive @ 120V13 A
Contact TypeSnap Action
Control TypeKnob
Enclosure ColorGray
Enclosure FinishBaked Enamel
Full Load Amps @ 120V AC15 A

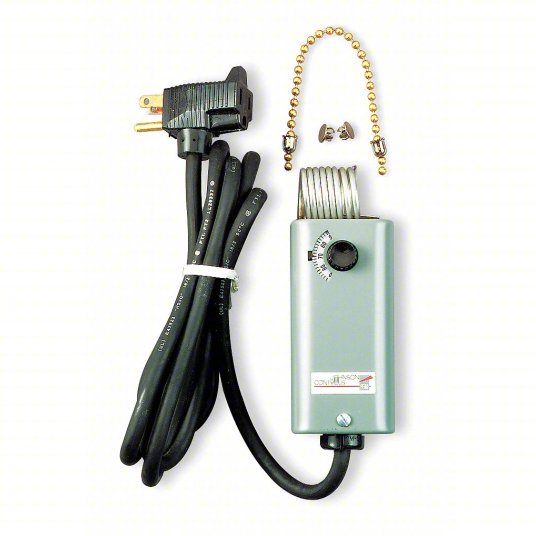

Includes6 ft Cord with Piggyback Plug; Mount with Suspension Chain or Wire
Inductive Amps @ 120V13 A
Key Pad LockoutNo
Locked Rotor Amps @ 120V90 A
StandardsCSA; UL
UNSPSC41112209
Country of OriginMexico
Item 2E535
Mfr. Model A19BAG-1E
