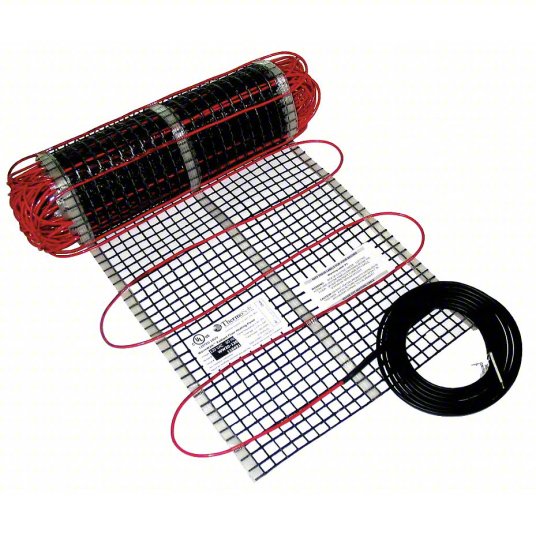

Under Floor Electric Heating System: 126 W Watt Output
Item 14C437
Mfr. Model WW7-120
These electric heating systems install under the floor to provide concentrated warmth at ground level. These systems consist of mats with built-in heating coils that are positioned between the subfloor and finished floor to provide consistent heat. They're used in renovations or new construction under bathroom, kitchen, and lobby floors. These systems require a remote-mounted thermostat.
Brand THERMOSOFT
For Use With Flooring Type Carpet; Ceramic Tile; Marble; Porcelain; Stone; Vinyl Tile
Overall Length 7 ft
Overall Width 18 in
Thermostat IncludedNo
Voltage120V AC
Wattage Output per Square Foot12 W
Wattage Output126 W
Amperage1.1 A
Control Type Thermostat (Not Included)
Control Volts 120V AC
Ambient Temp. Range32 to 104°F
Cold Lead2-Wire 16 AWG Plus Ground Braid
Heating Cable Conductor TypeDual XLPE Insulated Conductors
Heating Cable Diameter1/8 in
Heating Cable Ground WireYes
Heating Cable InsulationChemical and Abrasion Resistant Outer Insulation; Flame Retardant Polymer Insulation
Heating Cable Shielding MaterialAluminum/Polyethylene Terephthalate
Heating Cable Spacing3 in
Heating Cable Wire Gauge50-12 AWG
For Use OutdoorsIndoor Only
For Use WithADG-4999; MTC-2991; UDG-4999; UDG4-4999; USG-4000; UWG4-4999
Heating Area10.5 sq ft
Heating Capacity429 BtuH
Heating MethodRadiant
Min. Bend Radius1-1/4 in
Phase 1
Frequency60 Hz
Includes10 in Lead Wire
Manufacturers Warranty Length25 yr
StandardsUL 1693 Listed, CSA 22.2 No. 130-2003 Listed
UNSPSC40101830
Country of OriginUSA
