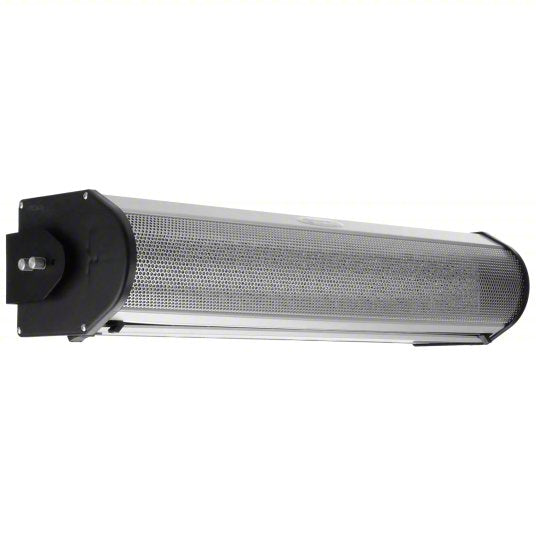

Unhtd 7"H 20.2"W 8"D Alumin Air Curtain: Ambient Air, For 1 1/2 ft Frame Opening Wd, 135 cfm, 1 Ph
These air curtains create an air-based barrier between indoor and outdoor spaces. This helps keep conditioned air inside the building and helps keep contaminants outside. They are usually smaller than regular air curtains and are meant to cover a much smaller opening
- Brand
- BERNER
- Manufacturer Part Number
- DTU03-1018AA
- Heated/Not Heated
- Not Heated
- HEPA Air Cleaning
- No
- Ultraviolet Air Cleaning
- No
- Sanitation Certified
- No
- Washdown
- No
- Profile Type
- Drive Thru
- Housing Color
- Silver
- Housing Material
- Aluminum
- Finish
- Powder Coated
- Grille Material
- Aluminum
- For Frame Opening Width
- 1-1/2 ft
- Max. Mounting Height - Environmental
- 3 ft
- Max. Mounting Height - Insects
- 5 ft
- Power Cord Length
- 6 ft
- Nameplate Voltage
- 120V AC
- Phase
- 1
- Frequency
- 60 Hz
- Full Load Current
- 1.6 A
- Power Consumption
- 0.06 kW
- Heater Power Consumption
- 0.06 kW
- Overall Height
- 7 in
- Overall Width
- 20-1/8 in
- Overall Depth
- 7-3/4 in
- Nozzle Width
- 16-1/2 in
- Max. Air Volume
- 135 cfm
- Max. Air Velocity
- 2,800 fpm
- Maximum Speed
- 1,625 RPM
- Sound Level @ 10 ft
- 51.5 dBA
- Number of Speeds
- 1
- Number of Motors
- 1
- Motor Type
- Shaded Pole
- Motor Horsepower per Motor
- 1/12 hp
- Motor Enclosure
- Open
- For Outdoor Use
- Yes
- Control Type
- Switch
- Electrical Connection
- Plug-In
- Includes
- (3) 6 ft Prong Grounded Plug with Factory Wired Fan On Off Switch
- Series
- DTU03
- Standards
- cULus; UL Listed
- UNSPSC
- 27131605
- Country of Origin
- USA
Item 6JGF3
Mfr. Model DTU03-1018AA
