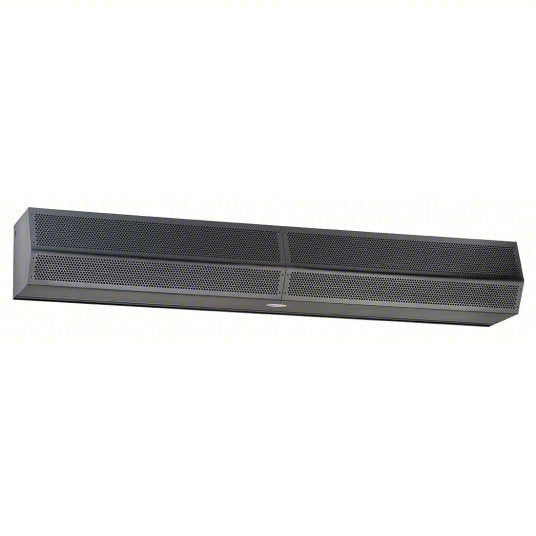

Unhtd 10.7"H 72"W 13"D Steel Air Curtain: Ambient Air, Std Profile, For 6 ft Opening Wd, 2,758 cfm
These air curtains are constructed using designs, processes, and materials that allow for easy access to their interior for cleaning. They meet or exceed the NSF37 standards and are available in low-profile and standard options.
- Brand
- MARS
- Manufacturer Part Number
- N272-2UA-OB
- Heated/Not Heated
- Not Heated
- HEPA Air Cleaning
- No
- Ultraviolet Air Cleaning
- No
- Sanitation Certified
- Yes
- Washdown
- No
- Profile Type
- Standard Profile
- Housing Color
- Black
- Housing Material
- Steel
- Finish
- Galvanized; Powder Coated
- Grille Material
- Steel
- For Opening Width
- 6 ft
- Max. Mounting Height - Environmental
- 7 ft
- Max. Mounting Height - Insects
- 7 ft
- Nameplate Voltage
- 115V AC
- Phase
- 1
- Frequency
- 60 Hz
- Full Load Current
- 10.2 A
- Power Consumption
- 1,000 W
- Overall Height
- 10-5/8 in
- Overall Width
- 72 in
- Overall Depth
- 13 in
- Nozzle Width
- 72 in
- Max. Air Volume
- 2,758 cfm
- Max. Air Velocity
- 5,960 fpm
- Maximum Speed
- 1,750 RPM
- Sound Level @ 10 ft
- 68 dBA
- Number of Speeds
- 1
- Number of Motors
- 2
- Motor Type
- Permanent Split Capacitor
- Motor Horsepower per Motor
- 1/2 hp
- Motor Enclosure
- Totally Enclosed Air Over
- Control Type
- Door Limit Switch; Motor Control Panel
- Series
- N2
- Standards
- AMCA Certified; ANSI/NSF 37; ETL Listed
- Nominal Voltage - Phase
- 120V AC – 1 Phase
- UNSPSC
- 27131605
- Country of Origin
- USA
- Item
- 45C655
- Mfr. Model
- N272-2UA-OB
