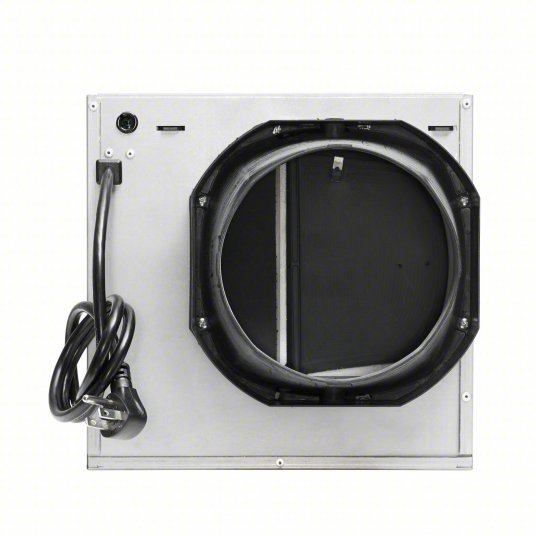

Supply fan, Fan, Fresh air, Fresh in, Ventilator: 180 cfm @ 0.100 in SP, Round Duct, 6 in Duct Dia

  • Sale
  • $555.00


Supply fan, Fan, Fresh air, Fresh in, Ventilator: 180 cfm @ 0.100 in SP, Round Duct, 6 in Duct Dia


Item
792HL7
Mfr. Model
FIN-180B
BrandBROAN
Discharge DirectionHorizontal
Duct Diameter6 in
Duct Height6 in
Duct ShapeRound
Duct Width6 in
Exhaust Airflow @ 0.100 in SP180 cfm
Exhaust Airflow @ 0.200 in SP180 cfm
Exhaust Airflow @ 0.250 in SP180 cfm
Exhaust Airflow @ 0.400 in SP170 cfm
Fan Wattage6 W
Frequency60 Hz
Full Load Current0.7 A
Housing MaterialGalvannealed Steel
Motor Output Power37-7/10 W
Motor TypeECM
Mounting TypeDirectly to Stud or Joist; Frame Screws; Flanges with Keyhole Slots
Nameplate Voltage120V AC
Number of Speeds5
Overall Depth14-3/4 in
Overall Height10-1/4 in
Overall Width10-1/4 in
Phase1
StandardscETLus Listed; Energy Star; HVI
Manufacturer Part NumberFIN-180B
UNSPSC40101604
Country of OriginMexico (subject to change)
Product Description

Round duct inline cabinet fans integrate into HVAC systems with round ductwork. They feature fixed or adjustable mounting brackets to allow for installation in a variety of ductwork configurations.
