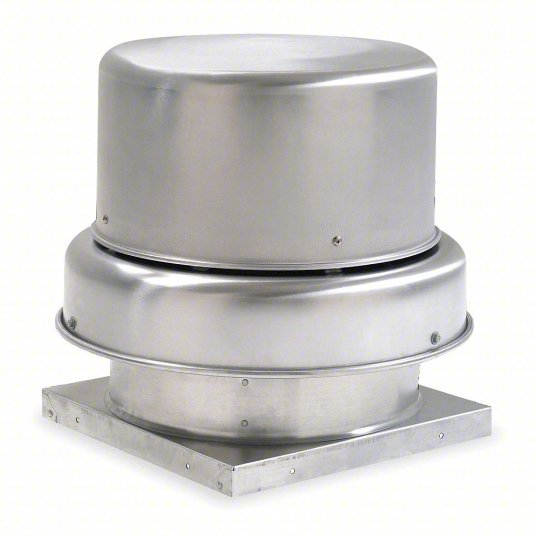

Centrifugal Downblast Roof Exhaust Fan: Belt Drive, Includes Drive Pack, 11 in Wheel, 373 cfm, 1
- Brand
- DAYTON
- For Air Type
- Clean Air
- Drive Type
- Belt Drive
- Includes Drive Package with Motor
- Yes
- Assembly
- Assembled
- Wheel Diameter
- 11 in
- Exhaust Airflow @ 0.000 in SP
- 373 cfm
- Exhaust Airflow @ 0.125 in SP
- 353 cfm
- Exhaust Airflow @ 0.250 in SP
- 335 cfm
- Exhaust Airflow @ 0.375 in SP
- 312 cfm
- Exhaust Airflow @ 0.500 in SP
- 292 cfm
- Maximum Static Pressure
- 1 in wc
- Nameplate Voltage
- 115/208-230V AC
- Phase
- 1
- Current
- 6.2/2.8 to 3.1 A
- Frequency
- 60 Hz
- Electrical Connection
- Power Cord
- Motor Horsepower
- 1/4 hp
- Brake Horsepower
- 13/100 hp
- Motor Speed
- 1,725 RPM
- Maximum Fan Speed
- 1,710 RPM
- Speed Controllable
- No
- Number of Speeds
- 1
- Motor Enclosure
- Open Dripproof
- High-Efficiency Motor
- No
- Motor Location
- Out of Airstream
- Wheel Type
- Backward Inclined
- Wheel Material
- Aluminum
- Housing Material
- Aluminum
- Housing Material Fabrication
- Spun
- Maximum Inlet Air Temperature
- 180 °F
- Maximum Ambient Temperature
- 180 °F
- Bearing Type
- Sealed Pillow Block
- Base Shape
- Square
- Base Height
- 1-3/4 in
- Base Length
- 19 in
- Base Width
- 19 in
- Housing Length
- 24.4 in
- Housing Width
- 24.4 in
- Overall Length
- 24-3/8 in
- Overall Width
- 24-3/8 in
- Overall Height
- 26-5/8 in
- Overall Diameter
- 24-3/8 in
- Damper Size
- 12 x 12 in
- Mount Type
- Roof Curb
- Mounting Location
- Roof
- Application
- Industrial and Commercial Applications
- Standards
- AMCA Sound and Air; CSA; UL/cUL 705
- Sound Level
- 10.0 sones @ 0.625 in SP and 5 ft; 10.3 sones @ 0.500 in SP and 5 ft; 10.6 sones @ 0.375 in SP and 5 ft; 11.0 sones @ 0.125 in SP and 5 ft; 11.0 sones @ 0.250 in SP and 5 ft; 11.1 sones @ 0.000 in SP and 5 ft; 9.3 sones @ 1.000 in SP and 5 ft; 9.5 sones @ 0.875 in SP and 5 ft; 9.8 sones @ 0.750 in SP and 5 ft
- Spark Resistant Construction Type
- A
- Compatible Curb Part Number
- 2RB75; 2ZV82; 4C453; 4C670; 4HX38; 4HX46
- Compatible Damper Part Number
- 4HX64
- Features
- Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours; Features a Fully Rolled Windband Bead for Increased Stability and Easy Transport; Fresh Outside Air is Drawn in Under the Motor Cover to Maximize Motor Life; Nema 1 Junction Box Located in Motor Enclosure; Nonoverloading Centrifugal Wheel Design; Optional Nema 1 and 4 Disconnects Available
- UNSPSC
- 40101502
- Country of Origin
- USA
-
- Product Description
-
Clean air fans with drive exhaust odorous, hot, or stale air. These fans come with a drive package that includes a motor, sheaves, belts, and bushings. Belt-drive fans are typically quieter and allow for more control over the fans' blade speed and airflow than direct-drive fans.
- Item
- 2RB59
- Mfr. Model
- 2RB59
