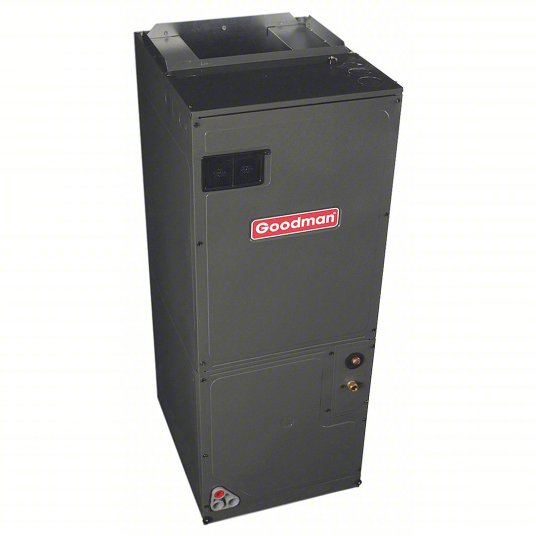

Single Piece Air Handler: 18,000 BtuH, 2 ton, 965 cfm @ 0.5 in wc, 208-230V AC, 1 Phase, 3 Speeds
Item 38GN02
Mfr. Model ARUF29B14
Brand GOODMAN
Nominal Cooling Capacity (Tons) 2 ton
Nominal Cooling Capacity (BtuH) 18,000 BtuH
Maximum Airflow965 cfm @ 0.5 in wc
Motor Horsepower1/3 hp
Motor TypePermanent Split Capacitor
Nameplate Voltage208-230V AC
Phase1
Frequency60 Hz
Current1.75 A
Number of Speeds3
Electric Heater CompatibleYes
Fuse Rating15 A
Expansion Device TypeFlow Rater
Refrigerant TypeR410A
Refrigerant Pre-Charged Yes
Coil Connection Type FPT
Housing Material Aluminum
Housing Material Finish Galvanized
Suction Line Size3/4 in
Liquid Line Size3/8 in
Return Air Opening Width14-3/8 in
Return Air Opening Depth19-1/2 in
Filter Size16 in W x 20 in H
Piston Size0.05 in
Supply Opening Width16-3/8 in
Supply Opening Depth11-5/16 in
Coil Drain Connection Size3/4 in
Overall Height45 in
Overall Width17-1/2 in
Overall Depth21 in
Manufacturer Part Number ARUF29B14
Air handlers with coils install into an HVAC system and cool the airstream as the system is running. This provides climate control and some dehumidification to the interior space. These units consist of a housing that contains a blower, blower motor, and evaporator coils.
