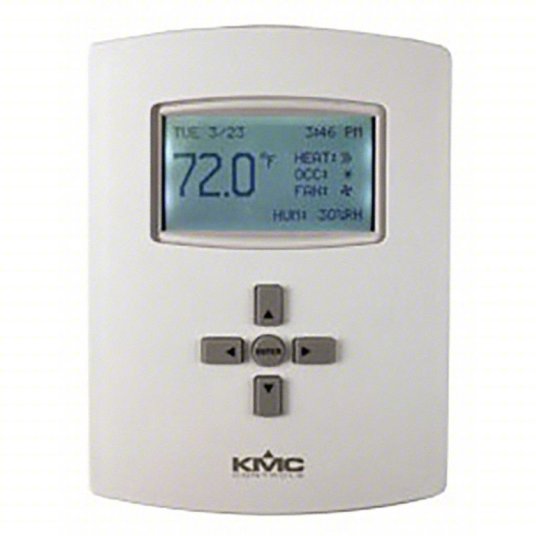

BACnet Controller: BACnet/IP, Air Handling Units/Heat Pumps With Aux, Floating/On/Off
These thermostat controls communicate with BACnet IP (Building Automation Control Networks Internet Protocol) systems. BACnet/IP is a network protocol that allows multiple devices to communicate across building automation systems using Ethernet to send signals directly to a device, so these thermostats communicate faster than BACnet MP/TP thermostats. BACnet/IP systems also allow for more controllers per network, so users can scale up installations of thermostats across more rooms. These thermostat controls can also be used for standalone, noncommunicating applications. They provide remote monitoring and programmable temperature control for common HVAC equipment in commercial buildings.
- Brand
- KMC CONTROLS
- Compatible System Type
- Air Handling Units; Heat Pumps With Aux
- Dehumidification Control
- No
- Housing Color
- White
- Humidification Control
- No
- Network Protocol Compatibility
- BACnet/IP
- Number of Relay Inputs
- 0
- Number of Relay Outputs
- 6
- Occupancy Sensor
- Compatible with Occupancy Sensor
- Overall Depth
- 1-1/8 in
- Overall Height
- 5-9/16 in
- Overall Width
- 4-3/16 in
- Temperature Adjustment
- Floating; On/Off
- Application
- Heat and Cool
- Amperage
- 1 A
- Backlit Screen
- Yes
- Contact Rating
- 24V AC
- Control Type
- Push Button
- Display Type
- Digital
- Electrical Connection Type
- Plug-In
- Enclosure Color
- White
- Housing Material
- Plastic
- Housing Type
- Standard Housing
- Includes
- Backplate
- Minimum Operating Humidity
- 10 %
- Maximum Operating Humidity
- 90 %
- Minimum Operating Temperature
- 34 °F
- Maximum Operating Temperature
- 122 °F
- Minimum Temperature Control
- 34 °F
- Maximum Temperature Control
- 100 °F
- Mounting Direction
- Vertical
- Number of Cooling Stages - Heat Pump System
- 2
- Number of Heating Stages - Conventional System
- 2
- Number of Heating Stages - Heat Pump System
- 2
- Number of Pipes
- 2; 4
- Number of Poles
- 1
- Programming Capability
- Fully Customizable In-App Based; Programmable
- Remote Control Functions
- On/Off and Temperature Control
- Sensor Location
- Built-In
- Sensor Type
- Occupancy Sensor
- Smart Connectivity
- No Connectivity
- Standards
- CA Title 24; Inc. (PECI).; Portland Energy Conservation; Section 121© and ASHRAE Standard 62.1-2007
- Switch Type
- SPDT
- Temperature Limiting
- Yes
- Temperature Scale
- Fahrenheit/Celsius
- Temperature Sensitivity
- +/- 0.9°F
- Voltage
- 24V AC
- Wireless
- Hardwired
- Mounting Location
- Wall
- UNSPSC
- 39121535
- Country of Origin
- USA
- Item
- 6HXR4
- Mfr. Model
- BAC-120063CW
