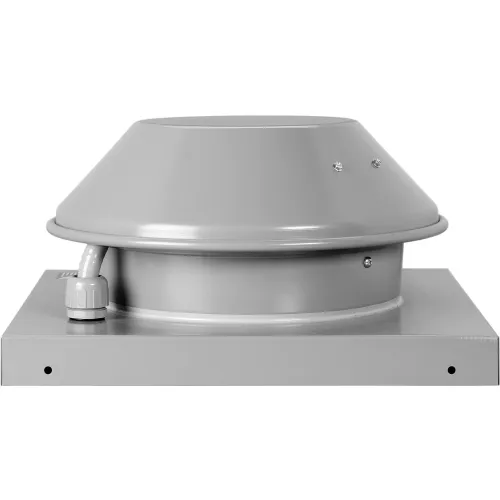

Fantech 6" Roof Mount (Curb) Centrifugal Direct Drive Ventilator REC 6, 115V, 1 PH, 227 CFM
case of 2
The RE/REC Series of direct drive centrifugal fans provide an excellent solution for residential or commercial ventilation applications where the fan must be mounted on the exterior of the building. Two base styles are available: RE models with a flat base for direct flashing to the roof or REC models with flanged base for curb mounting. RE models can also be mounted on an exterior wall when roof access is not suitable.
Features:
- 100% speed controllable
- Suitable for airstream temperatures of up to 140° F
- Excellent heat dissipation for long motor life
- Built-in thermal overload protection with automatic reset
- Five-year warranty
- AMCA Air, AMCA Sound and cULus certified
Weights & Dimensions
| Weight | 14 lbs |
| Base Length | 15-1/2 in |
| Base Height | 1-1/2 in |
| Fan Diameter | 6 in |
| Height | 8 in |
| Length | 8 in |
| Width | 6-1/4 in |
Product Details
| Number of Speeds | Variable |
| Operating Temperature | Up To 140° F |
| For Use With | WC15, SCD5 |
| Mounting Location | Roof |
| Peak Fan Power Input | 87 BHP |
| Material | Galvanized Steel |
| Phase | 1 |
| Manufacturers Part Number | REC 6 |
| Brand | Fantech |
| Amperage | 0.60 A |
| Drive Type | Direct Drive |
| Hertz | 60 Hz |
| Sones | 7.5 |
| Speed Controllable | Y |
| RPM High | 2,451 rpm |
| Voltage | 115 V |
| CFM High | 227 CFM |
| Description | Attic / Wall Mount Ventilator |
| Watts | 87 W |
Model #: WBB2146534
MPN #: REC 6
